Optimap PSD

Map and measure surface finish with the the Optimap3-PSD
Characterization of common surface irregularities including defects, waviness and roughness
Suitable for all finishes, from matt to mirror
On-screen image analysis

Industries & Applications

Automotive Exterior
Automotive Interior
Composite
Furniture
Metal Finishing
Paints & Coatings
Plastics
Smartphone, Tablet & Laptop Covers

Extended warranty

Find out more

Try before you buy

Find out more

Test my samples

Find out more

£32,800

All GBP prices are exclusive of UK VAT (where applicable)

Prices exclude local duties – Purchase through your local agent

Advanced Surface Metrology

Optimap3, the unique portable solution for surface inspection, allows rapid large area measurement and analysis of all types of coated or uncoated surfaces.

Powerful on-screen functionality includes cross-sectional viewing allowing detection and characterisation of common surface irregularities including defects and waviness.

In quality control, inferior surface evaluation methods are still commonplace. Many methods lack definition, are time consuming and subjective. Modern consumers demand high quality products with surface finishes that are homogeneous and free from defects.

The use of Optimap3 provides a unique solution to these measurement challenges providing quantifiable data for improved production control.

In one fast operation Optimap3 maps the topography of a surface displaying defects and texture in incredible detail. Mapped information is processed into objective surface data that can be used to effectively control product quality.

The Optimap 3 can measure

Orange Peel
Waviness
DOI
Overspray
Inclusions
Blistering
Sagging
Waterstains

Representative surface analysis

Optimap3 objectively measures and characterises many aspects of surface quality including texture, waviness and local defects including orange peel, inclusions, dents and scratches.

Its large measurement area (65 x 54mm) and speed of operation (under 10 secs) provides rapid measurement with results that are more representative than those made with profilometers or other optical scanning instruments and can be reported in traceable SI units or other industry specific units.

With a lateral resolution of <37um Optimap3 has the power to capture surface defects that are invisible to the human eye.

A unique measurement solution

Next Generation Revolutionary Optimap surface analysis instrument.

The icon based touch screen allows ease of use by simply pressing the relevant active areas on the screen.

HIGHER Resolution Full Field Surface Mapping (<0.1um Z- lateral, 37um X-Y resolution)

Allows full field measurement of surface areas to be measured in high detail

Dual focus system with reflected image analysis

Automatically detects the reflectivity level of the surface and adjusts the setup to suit

On board surface roughness / waviness

Results comparable to profilometry and other optical measurement techniques

Non-contact measurement for wet paint

The ONLY product that can measure the formation of orange peel of wet paint

Compatible with visual appearance scales

(TAMS and Wavescale values) used in automotive and high end applications

Benefits of using the Optimap3

Fast, reliable and portable
Intuitive user interface
Flexible screen view features
Powerful offline analysis

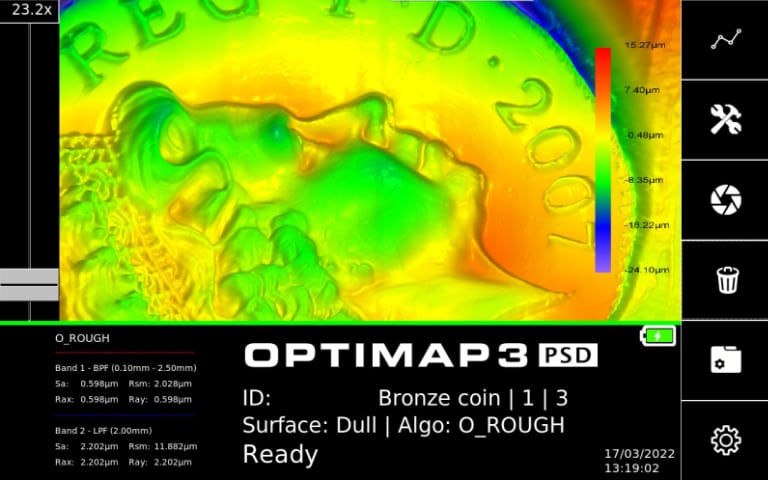

Instant 3-D maps of surface features
On screen visualization and analysis of texture and defects
Easy to understand parameters highly correlated to human perception
Results correlated to interferometry measurements

How does the Optimap3 measure and analyse surfaces?

Optimap3’s intuitive user interface provides operation, setup and display of measurement results.

The icon based touch screen allows ease of use by simply pressing the relevant active areas on the screen.

Phase Measurement Deflectometry (PMD) is used to map surface topography

Fringe patterns are displayed on an internal target screen.

The Fringe Patterns are animated (phase stepped) in X & Y directions.

The Optimap3 has two modes – reflective and dull

High frequency fringes are used to measure reflective surfaces – low frequency for dull surfaces.

Intuitive user interface

Optimap3’s intuitive user interface provides operation, setup and display of measurement results.

The icon based touch screen allows ease of use by simply pressing the relevant active areas on the screen.

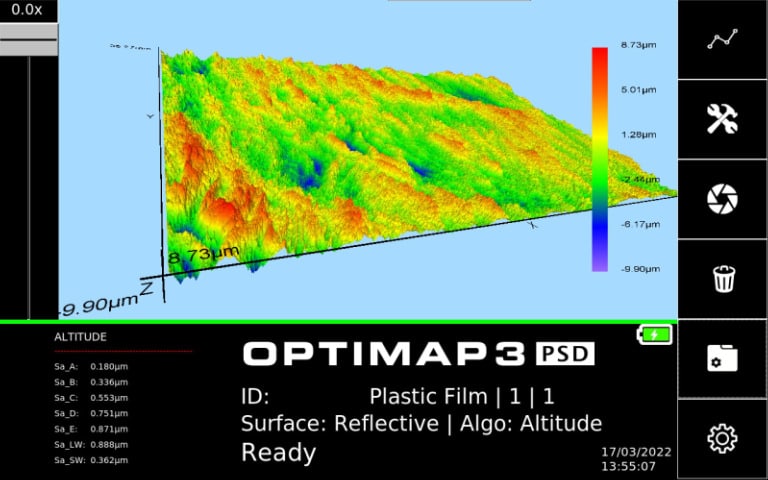

Cross sections can be created through the surface by touching the relevant point of interest on the displayed image and viewing the chart in the upper display.

The cross section is active and can be moved over the image in X and Y to view changes across the surface.

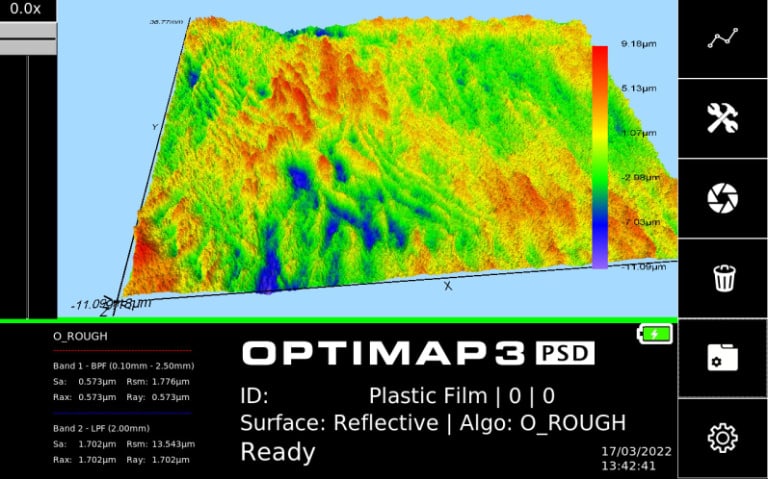

The magnification of the image can be adjusted via magnification slider.

Features

Rugged and accurate, the Optimap3 is suitable for laboratory, factory or on-site inspection.

SD Card

Touch screen

Camera

Interchangeable Measurement Base

6 x Anchor Points

LAN

Static operation

No movement required during measurement, preventing any damage during operation

Sees what the eye cannot

A lateral resolution of <37um that has the power to capture surface defects which are invisible to the human eye

Rapid large area measurement

A large area is mapped in a single operation (65 x 54mm) in under 10 secs

Measurement Surfaces and Applications

The Optimap3 can be used on a wide range of surfaces from ultra low gloss to mirror finish.

Automotive

Substrate, Steel, Aluminium, Plastics, E-Coat, Primer, Clearcoat, Vinyl Wrap, Chrome parts
Measurement of surface texture, appearance and detailed analysis of defects.

Plastics and Composites

Moulded parts - surface quality, primer quality and final appearance.
Defect detection, characterisation and analysis. Process optimisation to improve final appearance quality.

Furniture

Lacquered and painted wood surfaces
Defect detection, characterisation and analysis. Process optimisation to improve final appearance quality.

Paints and Coatings

Exterior, interior, wood and metal paint including non contact measurement of wet paint.

Displays

Display Films and plastics.
Reflective Appearance and surface texture.

Aerospace

Exterior paint quality and appearance.

Yacht Coatings

Painted parts and substrates.

Included accessories

Verification tile
USB key
Instruction manual
Optimap Reader software
Measurement base

Optional accessories

Non-contact base for measuring wet paint

Optimap Reader software

Featuring advanced tools for the identification, classification and quantification of surface defects including:

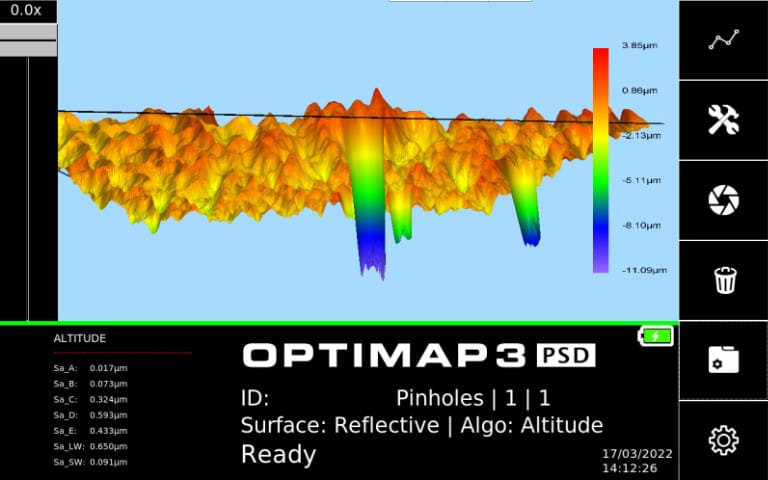

Pinholes
Inclusions
Scratches

Instrument verification

Due to the PSD measurement principle, the Optimap requires no calibration.

It is recommended however that a verification check is performed periodically (about once every 3 months) using the reference tile included with the instrument.

Verification check is simple requiring one measurement to be made and comparing the result obtained with the values indicated on the tile.

If the measured values are within the agreed tolerance then the instrument can be used. If they are outside the tolerance please contact your nearest Rhopoint Authorised Service Representative for advice.

Specifications

Instrument Information
Measurement	Compatibility	Optimap1, 2 & 3, TAMS, RoboTAMS
	Field of View	65 x 54mm
	Measurement Focus	Dual Focus - Target Images and Surface
	Spatial Resolution	37 um/pixel
	Measurement Techniques	􀁹 Phase Measurement Deflectometery 􀁹 Optical Transfer Function 􀁹 Line Deformation Analysis 􀁹 Surface Imaging
	Measurement Time	10 Seconds
	Topographical Output	􀁹 Curvature Map 􀁹 Altitude Map
	Filter Options	􀁹 Wavescan Band Filtering 􀁹 User Definable ISO GPS 􀁹 High Pass, Low Pass, Band Pass
	Profile Analysis	Yes
	Measurement Parameters	K, Ka, Kb, Kc, Kd, Ke, KLW, KSW, T, Ta, Tb, Tc, Td, Te, TLW, TSW, Q, H, S, W, D, C, RaX, RaY, Sa, Rsm
Hardware	Processor	Intel i7 Gen 5
	Memory	256 GB
	Battery	Rechargeable Lithium ion 12000mAh
	Typical Use/Charge	3 - 4 hours / charge
	Camera	3.2 MP- dual Focus
	Output Data	Maps/CSV/Results database
	Data Transfer/Speed	SD Card - 12.5 MBs
	Display	10.1 Capacitive Touch 1280 x 800
	Dimensions	233mm (H) x 314mm (H) x 235mm (D)
	Carry options	6 Point harness anchors
	Fixture	Removable Measurement Base
	Optional Extra	􀁹 Wet paint measurement Base 􀁹 Customisable jigs and fixtures
	Weight	3.5Kg
Interface	HMI Interface	Optimap 3 GUI- 10 point touch
	SPC Integration	Yes
	Connectivity	LAN USB

Order Codes
Optimap3 PSD	A7000-003
Optimap3 non-contact base for wet paint measurement	B7000-050
