Novo-Shade Duo + Shade, Opacity & Cleanliness Meter

£2,375

All GBP prices are exclusive of UK VAT (where applicable)

Prices exclude local duties – Purchase through your local agent

Try before you buy

Find out more

Extended warranty

Find out more

Try before you buy

Find out more

Extended warranty

Find out more

A versatile solution for reflectometry measurement

The Novo-Shade Duo+ is a portable 45/0° reflectometer that can be used to assess either the shade of a surface (a simple indication of colour based on lightness/darkness) or calculate the opacity of a coating, plastic film or paper sample. By measuring using 45/0°, the Novo- Shade Duo+ measures the colour of a surface and not the specular reflectance (gloss).

Shade

Measure the shade of a surface on a greyscale

Opacity

Measure substrate opacity/hiding power

Cleanliness

Measure substrate cleanliness

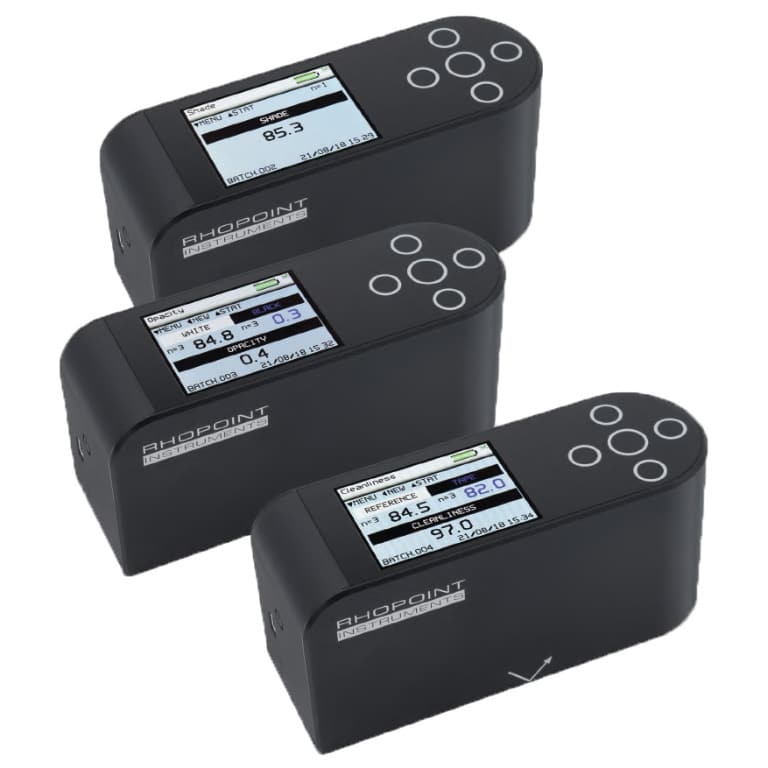

Novo shade dup plus x3

Shade mode

To measure the shade of a coating simply place the instrument on the surface of the sample to be measured and press the centre button. The value is displayed on the screen. The shade measurement is based on a greyscale value where black has a value of zero and white is the value of the calibration standard included with the instrument.

Novo Shade Duo + Product
Novo shade duo plus shade
Fast measurement

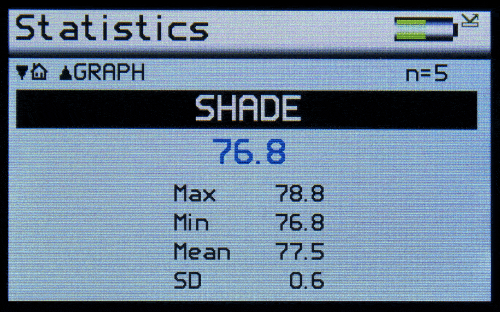

Novo Shade Duo Plus Shade Statistics
On-board statistics
Novo Shade Duo Plus Shade Trend
Trend analysis graph

Applications

Grey Shades of Paint
Shade of paints, inks and coatings
Rust Texture
Chalking of paint
Efficiency of detergents and bleaching
Efficiency of detergents and bleaching agents
White Recycled Paper
Whiteness of recycled paper

Opacity mode

To measure the opacity of a coating, it must be drawn down on a Leneta-type opacity chart at the required film weight and allowed to fully dry. To measure the opacity of plastic film, paper, textile or any other semi-opaque material, the sample to be measured should be placed over a black and white test bed, a Leneta-type chart is also suggested.

Novo Shade Duo + Product Opacity
Novo shade duo plus opacity
Fast measurement of all parameters Automatic calculation of opacity
NovoShade Duo + Opacity & Cleanliness Screen
On-board statistics for opacity and cleanliness
Novo shade duo plus opacity reading

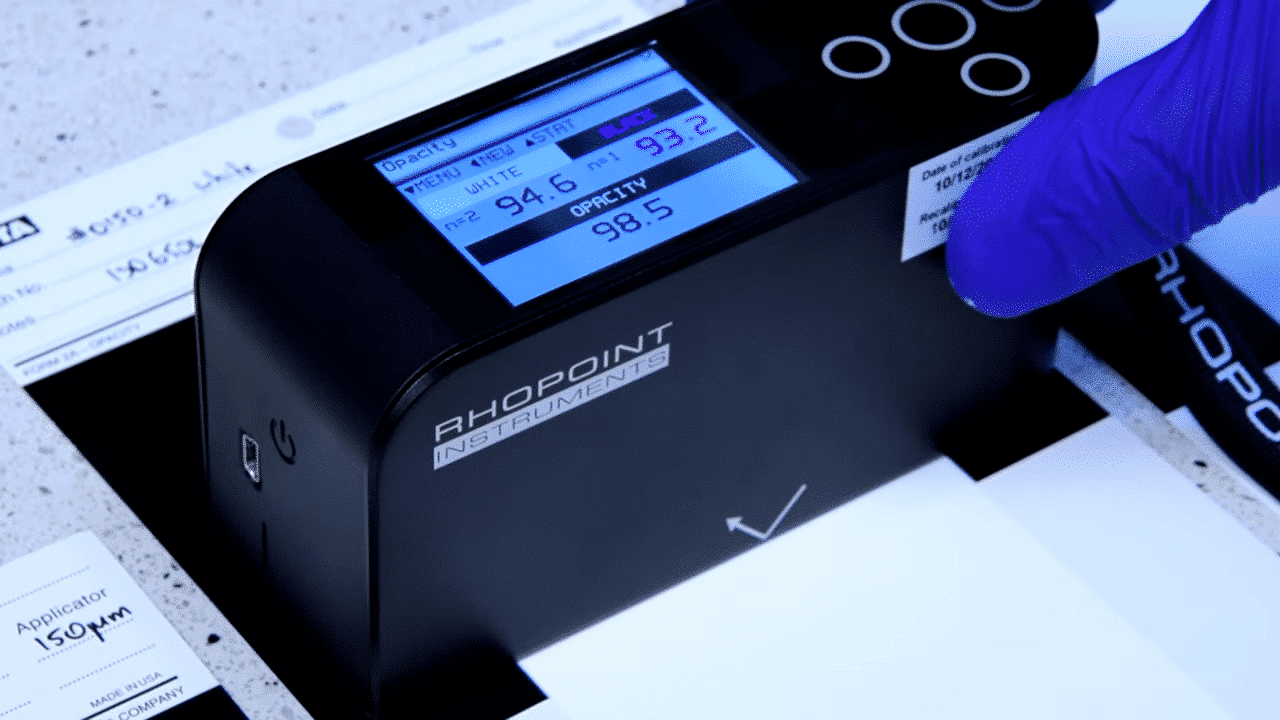

Measurements are made over a white substrate and then over a black substrate. Opacity is automatically calculated and displayed.

Applications

Hiding power
Hiding power of paints, inks and coatings
Transparent Plastic Bag
Transparency of plastic film
White Paper Stack
Opacity of paper

Cleanliness mode

To measure cleanliness, clear tape is used to collect debris from the surface under test. This is then stuck to any suitable white substrate along with a sample of tape that is perfectly clean.

Novo Shade Duo + Product Cleanliness
Novo Shade Duo + Cleanliness Screen
Fast measurement of cleanliness
NovoShade Duo Cleanliness Statistics
On-board statistics
Novo shade duo plus tape
Clear tape is pressed on the measurement surface, torn away and stuck onto white paper - For reference a clean piece of tape is also stuck on the same white paper.

Measurements are made of the reference material and then of the tape, cleanliness is calculated automatically.

Applications

Aged Metal Shield
Cleanliness and Oxidisation on Metal Surfaces

Features

The instrument is controlled by pressing the relevant touch sensitive buttons. Functionality is dependent on which operating mode the instrument is in.

Pass/Fail

The Pass/Fail setup screen is used to enable/disable on-screen pass/fail indication and set min/max tolerancing for easy identification and reporting of non-confomances.

Software-free Rapid Data Transfer

USB connection to a computer instantly recognises the device as a drive location which facilitates the quick transfer of files using Windows File Explorer or similar software.

Power

20,000+ readings per charge. The instrument is rechargeable via USB/PC or mains.

Easy Batching (Shade Mode Only)

User definable batch names and batch sizes for quicker and more efficient reporting.

Operation

  • Full colour easy to read screen
  • Adjustable brightness
  • 5 button touch sensitive interface

Construction

  • All aluminium construction – enclosure, optics, standard holder
  • Integrated calibration holder with in-position detector for error-free calibration

Benefits of using Novo-Shade Duo+

  • Continuous-read feature for quickly checking large surfaces (shade measurement only)
  • Measurements displayed instantly on screen
  • Statistical analysis gives an instant indication of batch quality
  • Date and time stamped results
  • Automatic calibration with tile validation
  • Compatible with all major international standards

Accessories

Included accessories

  • Certified calibration tile with certificate
  • USB data cable
  • Wrist strap
  • Novo-Gloss Multi Gauge software
  • Instructional videos
  • USB data stick containing:
    • Instruction manual
    • Bluetooth data app
    • Example Excel spreadsheets
Novo Shade Duo Plus Complete Accessories

Specifications

Instrument Information
Statistical AnalysisMax, Min, Mean, SD
Graphical AnalysisOn board trend analysis
PowerRechargeable lithium-ion battery
17+ hours operation
20,000+ readings per charge
Recharge TimeMains charger: 4hrs
StandardsASTM E97, ASTM D4214, ASTM D2805, ASTM D589, BS 3900-D4, BS 3900-D7, DIN 6125, ISO 2814, ISO 6504
Memory8 MB = 999 readings
User definable alphanumeric batching
Data TransferBluetooth
USB connection (no software installation required)
PerformanceResolution 0.1
Repeatability 0.2%
Reproducibility 0.5%
Operating temperature 15°C - 40°C (60°F - 104°F)
Humidity up to 85% (non-condensing)
Dimension & Weights
Measurement Spot Size15mm x 10mm elipse
Unit Dimensions65mm (H) x 140mm (W) x 50mm (D)
Unit Weight790g
Packed Weight1.75kg
Packed Dimensions180mm (H) x 330mm (W) x 280mm (D)
Commodity Code9027 5000
Order CodeA4000-010
Measurement Units
Shade Mode0 = Black – no reflectance
100 = Brilliant white – full reflectance
Opacity Mode0 = Completely transparent
100 = Fully opaque
Cleanliness Mode0 = No change
100 = Maximum change
Free extended warranty

Free extended 2 year warranty: Requires registration at www.rhopointinstruments.com/help-services/forms-feedback/instrument-registration/ within 28 days of purchase. Without registration, 1 year standard warranty applies.

Calibration and service

Fast and economic service via our global network of accredited calibration and service centres. Please visit www.rhopointinstruments.com/help-services/calibration-servicing/ for detailed information.
