Hanatek Universal Sample Cutter (USC)

  • Configurable for multiple test types e.g. friction, grammage, rub
  • Suitable for film, paper, foils etc
  • Same accuracy independent of operator
  • Repeatable, time saving

£1,795

All GBP prices are exclusive of UK VAT (where applicable)

Prices exclude local duties – Purchase through your local agent

Try before you buy

Find out more

Extended warranty

Find out more

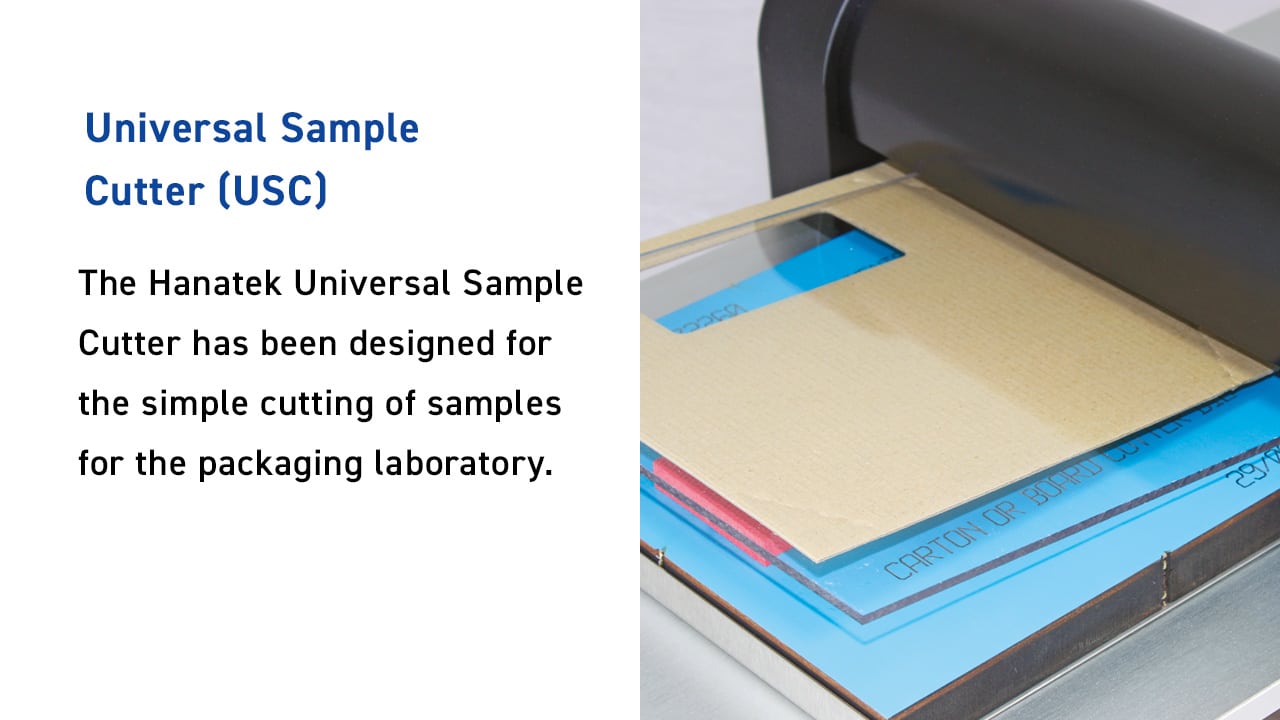

The Hanatek Universal Sample Cutter has been designed for the simple cutting of samples for the packaging laboratory.

Variety of Substrates and Test Types

Suitable for a variety of substrates including those that are hard to cut with traditional cutters.

  • Film, down to 6μm
  • Tissue
  • Paper
  • Carton boards
  • Foils
  • Laminate
USC samples

Time

Save valuable time by preparing multiple samples simultaneously.

Cost Effective

The USC uses interchangeable dies to suit different test types. Simply purchase a new die for the test type required.

Safety

Increase operator safety – no knives required.

USC samples

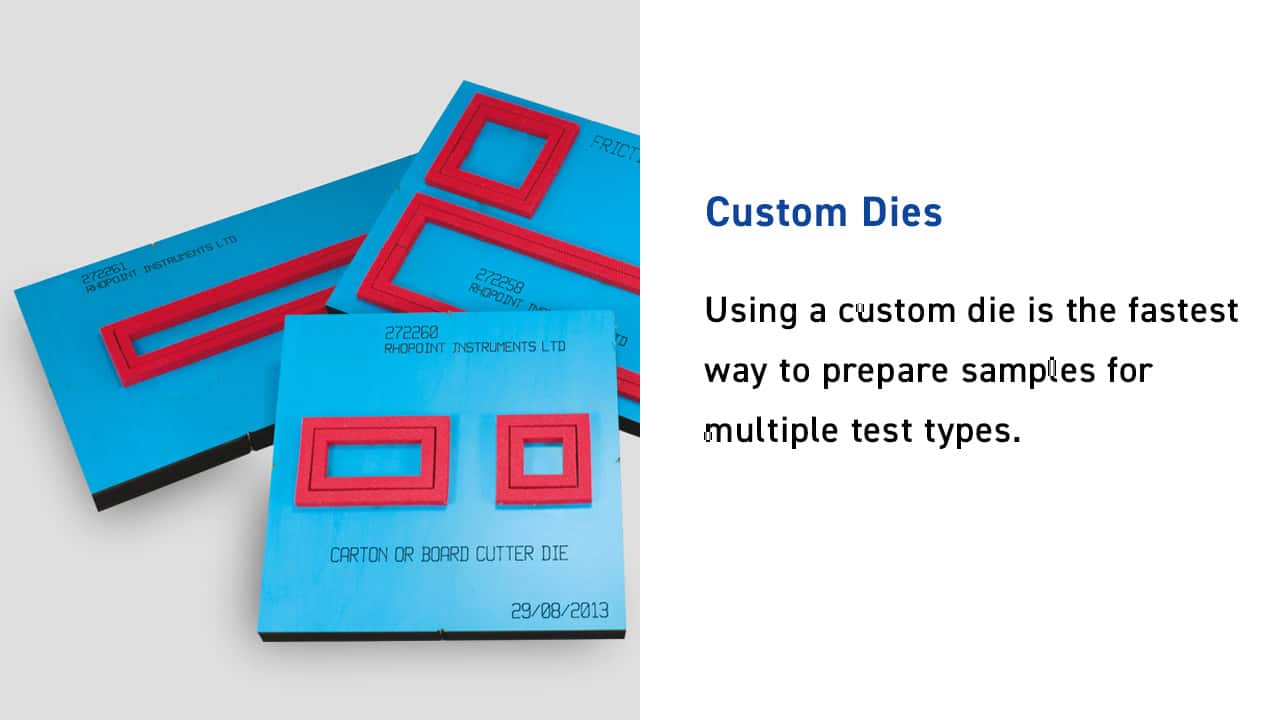

Custom Dies

Using a custom die is the fastest way to prepare samples for multiple test types. From a single sheet of material, samples can be prepared accurately and quickly.

USC dies
1 or 2 of the same shape.
USC dies
Up to 5 shapes of different sizes.
USC samples
More than 5 different sized shapes or additional punched holes within shapes.
USC dies
Crease and stiffness samples for a given pack size. Uses ejector pins for alignment.

Standard Dies

We have standard dies available to cut samples for most test types including:

Dimensions

usc-product-dimensions

Small Die

USC dies

Large Die

usc-hands-turning-handle
usc-handle-close-up

Samples produced are always to specification independent of operator.

  • Accurate
  • Repeatable
  • Reliable

Substrates & Standards

The USC is suitable for cutting a variety of substrates from 6μm to 250μm.

Specifications

Instrument Specifications
Material thickness6μm to 250μm
Applied pressure during cut2 psi
Maximum sample area (Large DIE)340mm x 180mm
Maximum sample area (Small DIE)180mm x 140mm
Dimension & Weights
Dimensions200mm (H) x 560mm (W) x 390mm (D)
Packed Weight14kg
Packed Dimensions360mm (H) x 650mm (W) x 500mm (D)
Commodity Code9024 9000
Calibration
All dies include a traceable calibration certificate
Order Codes
Universal Sample CutterRL-B80-001
Die - Crease & Board to BS6965RL-B-CUTTER/CARTON
Die - Friction to ASTM D1894 / ISO 8925 (FILM)RL-B-CUTTER/FRICTION FILM
Die - Friction to ASTM D1894 / ISO 8925 (BOARD)RL-H-CUTTER/FRICTION-CFT
Die - Rub testing to BS3110RL-B-CUTTER/RUB
Die - Grammage testing to ASTM D646RL-B-CUTTER/GRAMMAGE
Bespoke cutter die - 1 or 2 of the same shapeRL-H-CUTTER/CUSTOM
Bespoke cutter die - Up to 5 shapes of different sizesRL-H-CUTTER/CUSTOM-2
Bespoke cutter die - More than 5 different sized shapes
or additional punched holes within shapes
RL-H-CUTTER/CUSTOM-3
Bespoke cutter die - Crease and stiffness samples for a
given pack size (Uses ejector pins for alignment)
RL-H-CUTTER/CUSTOM-4
Free extended warranty

Free extended 2 year warranty: Requires registration at www.rhopointinstruments.com/help-services/forms-feedback/instrument-registration/ within 28 days of purchase. Without registration, 1 year standard warranty applies.

Calibration and service

Fast and economic service via our global network of accredited calibration and service centres. Please visit www.rhopointinstruments.com/help-services/calibration-servicing/ for detailed information.
