Hanatek Carton Crease Proofer (CCP)

  • Determine optimum crease settings
  • Check substrate suitability
  • Check ink & coating flexibility
Try before you buy

Find out more

Extended warranty

Find out more

Try before you buy

Find out more

Extended warranty

Find out more

Features

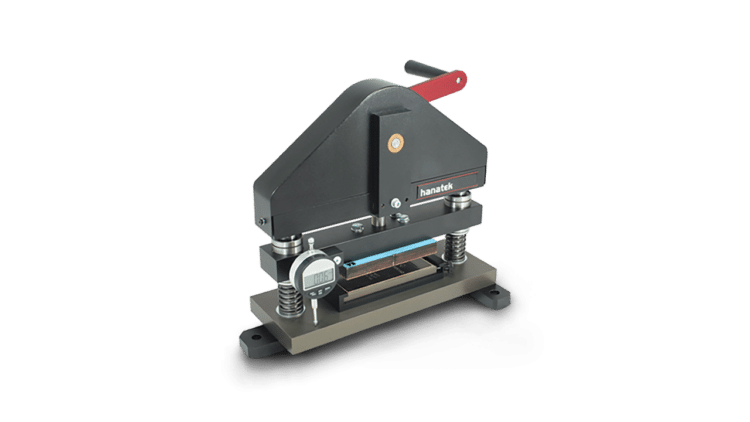

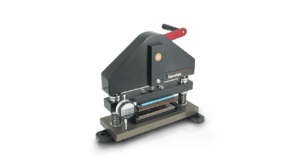

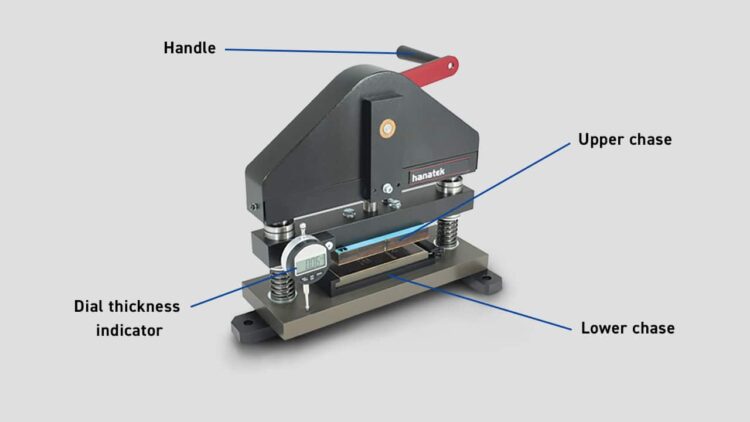

The Hanatek Carton Crease Proofer (CCP) allows the user to produce production quality crease samples without committing valuable machine time. The instrument can assist in checking ink and coating flexibility. The CCP comes complete with commercially produced rules and dies which are identical to those used on a full sized cut and crease machine.

Optimise crease settings

The Hanatek CCP allows the user to produce production quality crease samples without committing valuable machine time.

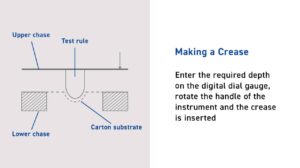

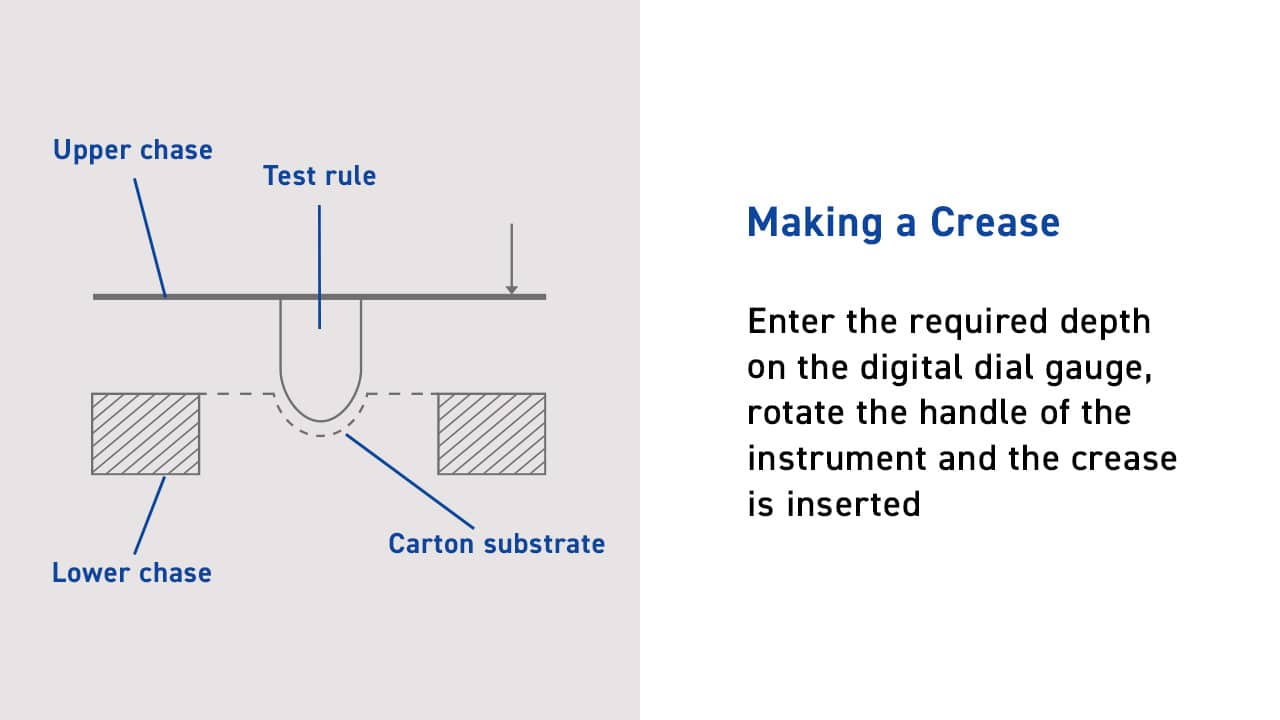

The CCP comes complete with commercially produced rules and dies which are identical to those used on a full sized cut and crease machine.

These can be used to identify a crease with the optimum mechanical properties and cosmetic appearance.

Control substrate quality

Important substrate properties can be easily compared before printing and converting.

  • Check for coating cracking
  • Produce production quality creases and predict carton run-ability using a Hanatek crease and board stiffness tester.

Determine ink and coating flexibility

The CCP is used in the ink laboratory to develop flexible coatings that resist cracking on commercial cartons.

Testing Samples

Samples prepared using the Hanatek Crease Proofer can be tested using the Hanatek Carton Force Analyser variable sample size instrument. Board stiffness and crease recover can be tested.

Who measures board stiffness and crease resistance?

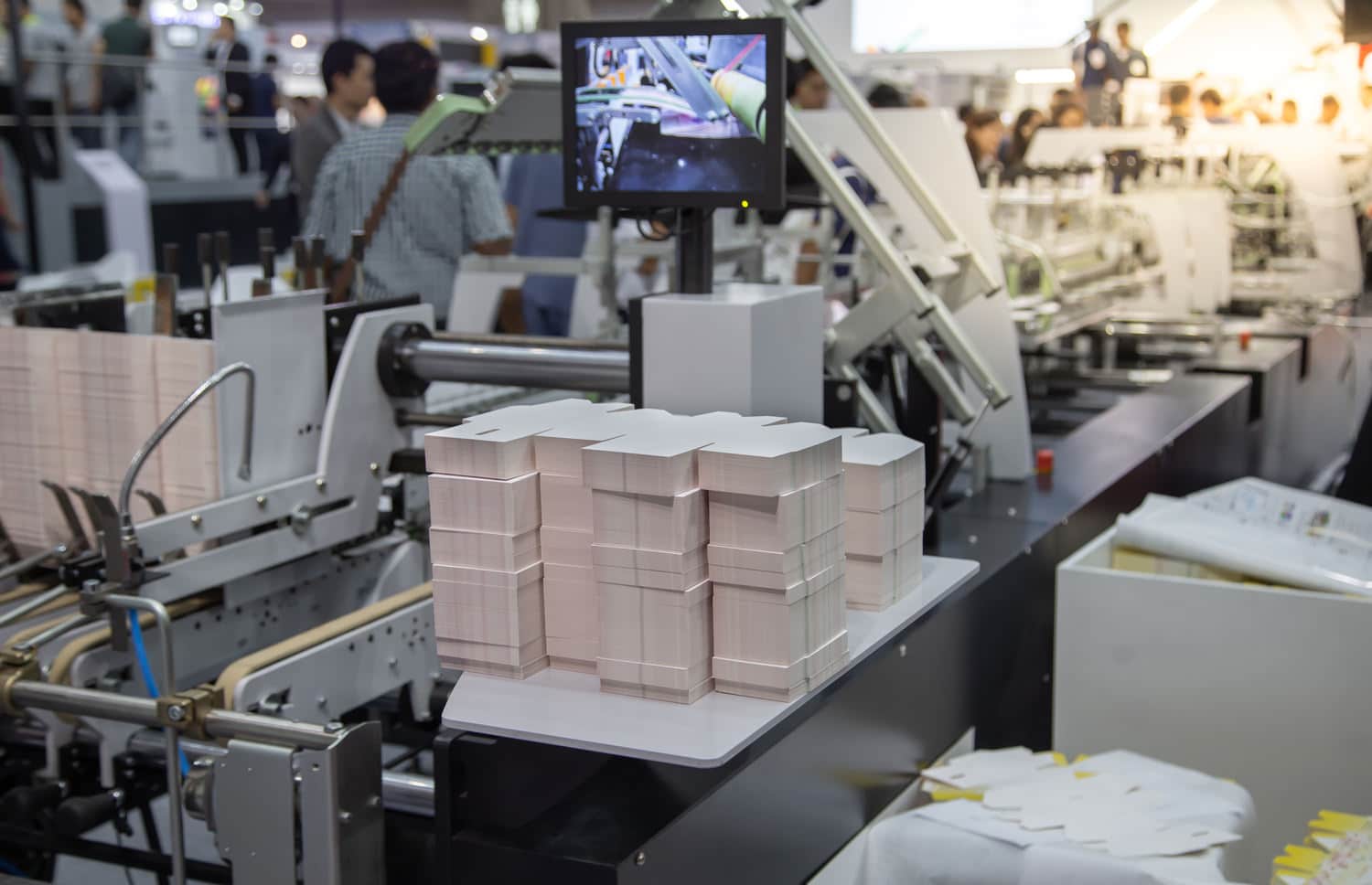

Board stiffness and crease resistance are important measures that indicate how a finished carton will run on an automated glueing, filling or packaging line.
Substrate manufacturers, printers, converters and any manufacturer who fills or packs products in cartons can use this measurement to optimise production.

QA departments use these instruments to check the running attributes of finished cartons are prior to conversion and filling, reducing lost production time from slow running or difficult to convert packaging.

Applications

Specifications

Instrument Information
SubstrateSuitable for carton board 350μm - 1020μm
Standard Creasing Rules
(included with the instrument)
2 PT and 3 PT
Crease Channels
(included with the instrument)
2PT: 13x channels, 1.0mm - 2.2mm in 0.1mm increments
3 PT: 13x channels, 1.35mm - 2.55mm in 0.1mm increments
Crease DepthSelectable by user
Optional Crease Rules1.5 PT or 4 PT
Dimensions350mm (H) x 390mm (W) x 200mm (D)
Weight25kg
Packed Weight28.3kg
Packed Dimensions340mm (H) x 450mm (W) x 430mm (D)
StandardsBS 4818 Method for determination of the creasing quality
of carton board (Pira method)
CCP Order CodeHAN-A9040CREASER
CCP 4PT (optional)HAN-A9040-100
CCP 1.5PT (optional)HAN-A9040-200
