The term “viscosity” is a parameter that describes a fluids resistance to flow. This resistance is a measure of the friction and the forces of interaction between the layers of a fluid. This friction is apparent when one layer of fluid is made to move against another The greater the friction, the greater the amount of force required to cause the movement – known as “shear”.
The process of flow through an orifice can often be used as a relative measurement and classification of viscosity. This measured kinematic viscosity is generally expressed in seconds of flow time which can be converted into centistokes (cSt) using a viscosity calculator.
Manufactured from high grade aluminium alloy with stainless steel orifices (where indicated), the Rhopoint Flow Cups are available with a range of UKAS / ISO 17025 certified standard oils to confirm the flow cup is measuring within specification.
| Instrument Information | ||
|---|---|---|
| Material | High grade aluminium alloy, stainless steel orifice | |
| Commodity Code | 9027 8091 | |
| Weight | 200 - 300g (depending on model) | |
| Product | Order code | Orifice diameter | Viscosity range | Flow times | |||
|---|---|---|---|---|---|---|---|

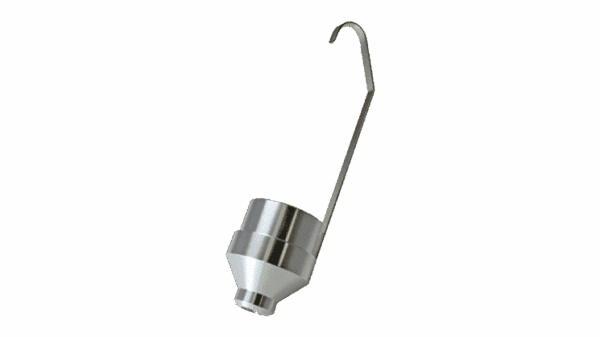

 | Frikmar Flow Cup 2mm - DIN 53211 | RL-A-FC-FRIKMAR/2 | 2mm (0.08”) | 15 - 30 cSt | 25s - 150s | ||
| Frikmar Flow Cup 4mm - DIN 53211 | RL-A-FC-FRIKMAR/4 | 4mm (0.16”) | 112 - 685cSt | 25s - 150s | ||
| Frikmar Flow Cup 6mm - DIN 53211 | RL-A-FC-FRIKMAR/6 | 6mm (0.24”) | 550 - 1500cSt | 25s - 150s | ||
| Frikmar Flow Cup 8mm - DIN 53211 | RL-A-FC-FRIKMAR/8 | 8mm (0.31”) | 1200 - 3000cSt | 25s - 150s | ||
| The orifices are manufactured from stainless steel. | (approximately) | |||||
