How to Measure with Cross Cut Module

How to measure Cross-cut Adhesion

1. Activate Interactive Measurement

   • Press the interactive measurement button.


2. Optimize Camera Exposure

   • Use the Auto-Exposure button (1) to optimise the camera exposure for the surface's reflectivity.
   • If necessary, manually adjust the exposure using the slider. (2).

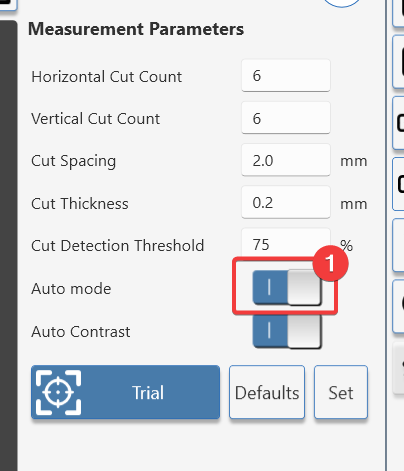

3. Choose Automatic or Manual Mode (1)

In auto mode AE detects the cuts, draws the virtual grid and calculates the amount of removed coating.

For irregular grids or tricky applications, the user can use manual mode to select the corners of the cross cut grid.
