Curved surface and small area gloss adaptor (included with standard device)

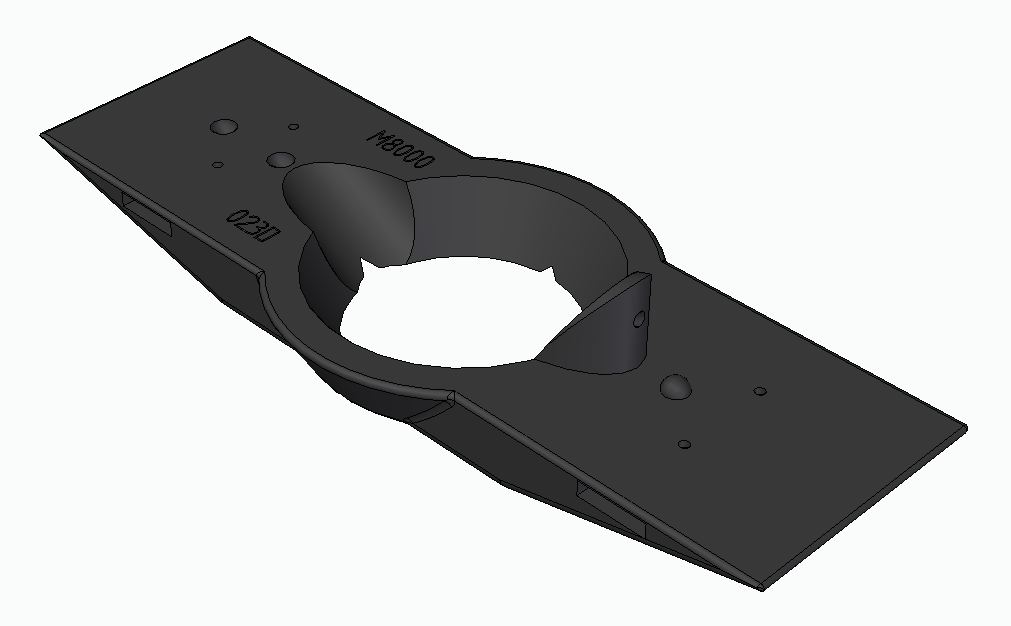

Small Area Gloss Adaptor
The small area gloss adapter is designed for curved surfaces or for resolving gloss in small areas where the standard Aesthetix gloss measurement spot is too large. The V-shaped cutouts are designed to allow accurate positioning of small cylindrical components.
It reduces the gloss measurement aperture from 9 Ă— 12 mm to approximately 2 Ă— 3 mm, allowing accurate measurements on tighter curves and small localised areas that need to be individually identified and characterised.
The flat smooth base of this adaptor makes it most suitable for flat panels or very gently curved surfaces.
For more complex curved surfaces consider the three or four point adaptors.
The small area gloss adaptor is supplied as standard with the Aesthetix sensor.
Part Number B8000-032
